IOS ZENGGE Sdk接入
1.开发前准备
1.1 CocosPod环境
本sdk依赖cocopod环境,请先确保项目已初始化cocospod框架

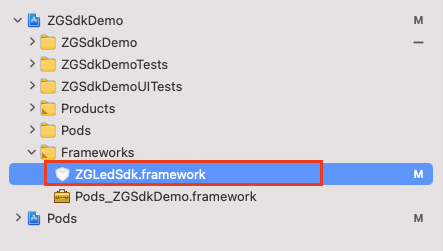

1.2 引入ZGLedSdk.framework
将提供的ZGLedSdk.framework拖入工程项目即可
同时在工程中通过CocoPods引入sdk所需三方库
pod 'CocoaAsyncSocket', '~> 7.4.3'
pod 'NSDate+Calendar', '~> 0.0.8'
pod 'NSDate+Helper', '~> 1.0.4'
pod 'JSONModel'
pod 'MQTTClient', '~> 0.15.3'
1.3 项目设置

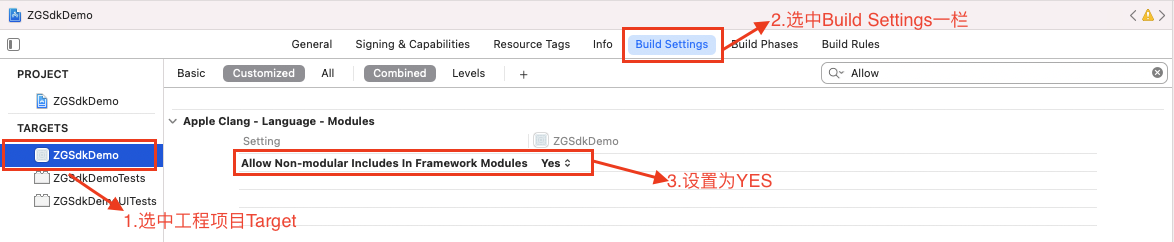

在工程项目的target->Build Settings->Allow Non-modular Includes In Framework Modules 设为YES

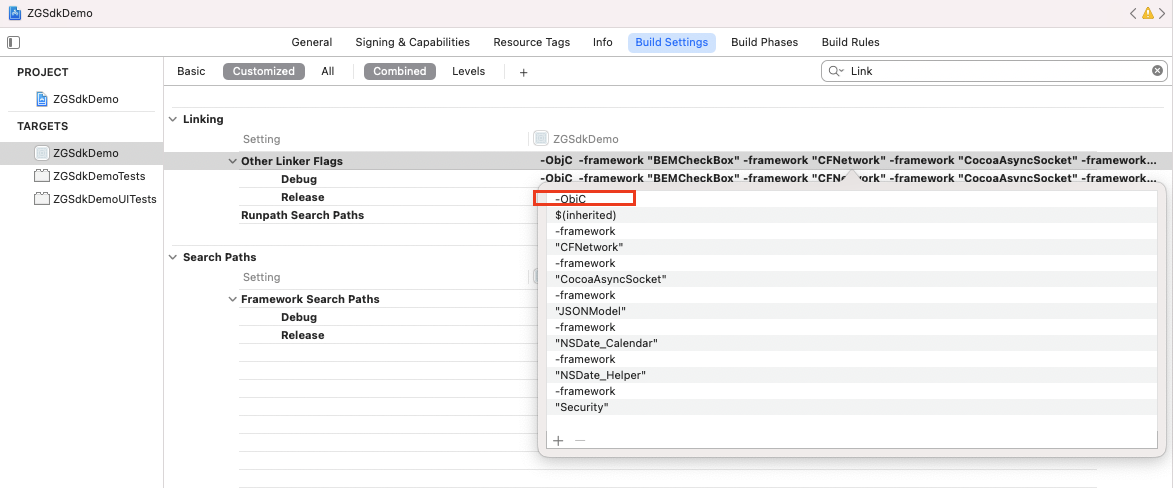

在工程项目的target->Build Settings->Linking->Other Link Flags增加-ObjC标记

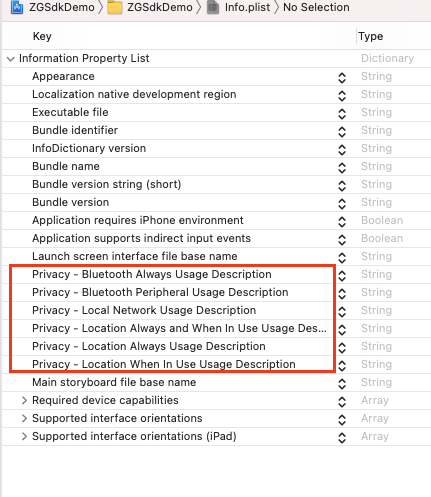

1.4 申请权限
请在项目info.plist加入相关权限
1.5 sdk使用
在需要sdk的文件中引入头文件即可
#import <ZGLedSdk/ZGLedSdk.h>
2.设备配网
2.1 动态申请权限
要使用发现设备功能在ios13以上需动态申请权限,请上网查阅或参考demo代码
2.2 搜索所有可配网设备
2.2.1 声明ZGHBDeviceProvisionHandler和ZGHBDeviceHadler类,并添加到DisBroad类(注:需准备一个唯一全局类存放DisBroad类以供后续调用)
//AppDelegate.h
@property(strong,nonatomic)DisBoard* disBoard;
//AppDelegate.m
self.disBoard=[DisBoard shareDisBoard];
ZGHBDeviceHandler* deviceHandler=[[ZGHBDeviceHandler alloc]initWithMacAddressList:[NSMutableArray array]];
ZGHBDeviceProvisionHandler* provisionHandler=[[ZGHBDeviceProvisionHandler alloc] init];
[self.disBoard addHandler:deviceHandler];
[self.disBoard addHandler:provisionHandler];
2.2.2 启动配网
self.deviceInfoList=[NSMutableArray array];
ZGHBDeviceHandler* deviceHandler=(ZGHBDeviceHandler*)[[AppDelegate Current].disBoard getHandler:ZGHBDeviceHandler.class];
ZGHBDeviceProvisionHandler* provisionHandler=(ZGHBDeviceProvisionHandler*)[[AppDelegate Current].disBoard getHandler:ZGHBDeviceProvisionHandler.class];
[provisionHandler start:5 timeOutBlock:^{
// NSLog(@"scan time out");
}];
[[AppDelegate Current].disBoard start];
2.2.3 搜索设备回调
@property(strong,nonatomic)NSMutableArray<NSString*>* deviceMacList;
self.deviceMacList=[NSMutableArray array];
//注册通知
ZGHBDeviceProvisionHandler* provisionHandler=(ZGHBDeviceProvisionHandler*)[disBoard getHandler:ZGHBDeviceProvisionHandler.class];
[provisionHandler.notificationCenter addObserver:self selector:@selector(onDeviceUpdate:) name:NotificationDevicesUpdate object:nil];
//设备搜索回调方法
-(void)onDeviceUpdate:(NSNotification*)notification{
NSDictionary* info=notification.userInfo;
BaseDevice* device=[info objectForKey:@"device"];
if (device==nil) {
return;
}
if (![self.deviceMacList containsObject:device.macAddress]) {
[self.deviceMacList addObject:device.macAddress];
DisBoard* disBoard=[AppDelegate Current].disBoard;
dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0), ^{
ZGHBDeviceHandler* deviceHandler=(ZGHBDeviceHandler*)[disBoard getHandler:ZGHBDeviceHandler.class];
if (deviceHandler!=nil) {
[deviceHandler addMacAddress:device.macAddress];//配网成功添加到ZGHBDebviceHandler,则ZGHBDebviceHandler才会把搜到的设备传递给上层处理
}
ZGHBDeviceProvisionHandler* provisionHandler=(ZGHBDeviceProvisionHandler*)[disBoard getHandler:ZGHBDeviceProvisionHandler.class];
if (provisionHandler!=nil) {
[provisionHandler addMacAddress:device.macAddress];//配网成功添加到ZGHBDeviceProvisionHandler,则ZGHBDeviceProvisionHandler跳过对已配网设备处理
}
});
}
}
3.设备控制
3.1 搜索所有可控制设备
3.1.1 ZGHBDeviceHadler添加监听回调
ZGHBDeviceHandler* deviceHandler=(ZGHBDeviceHandler*)[[AppDelegate Current].disBoard getHandler:ZGHBDeviceHandler.class];
[deviceHandler.notificationCenter addObserver:self selector:@selector(onDeviceUpdate:) name:NotificationDevicesUpdate object:nil];
3.1.2 监听回调
-(void)onDeviceUpdate:(NSNotification*)notification
{
NSDictionary* info=notification.userInfo;
BaseDevice* device=[info objectForKey:@"device"];
if (device==nil) {
return;
}
if ([device isKindOfClass:[ZGHBDevice class]]) {
ZGHBDevice *zghbDevice = (ZGHBDevice*)device;
//Do what you want to do
}
}
3.2 发送控制指令
3.2.1 发送写命令(不需要返回结果)
NSData* payload=[[NSData alloc]init];//具体数据请参考协议
ZGHBDeviceHandler* deviceHandler=(ZGHBDeviceHandler*)[[AppDelegate Current].disBoard getHandler:ZGHBDeviceHandler.class];
[deviceHandler writeTo:macAddress withCmdId:cmdId withParams:payload withSuccessBlock:^(ZGHBDevice * _Nonnull device) {
NSLog(@"write success");
} withFailBlock:^(NSError * _Nonnull error) {
NSLog(@"write error:%@",error.description);
}];
3.2.2 发送请求指令(需要返回结果)
NSData* payload=[[NSData alloc]init];//具体数据请参考协议
ZGHBDeviceHandler* deviceHandler=(ZGHBDeviceHandler*)[[AppDelegate Current].disBoard getHandler:ZGHBDeviceHandler.class];
[deviceHandler requestTo:macAddress withCmdId:cmdId withParams:payload withSuccessBlock:^(NSDictionary * _Nonnull dic, ZGHBDevice * _Nonnull device) {
} withFailBlock:^(NSError * _Nonnull error) {
}];
